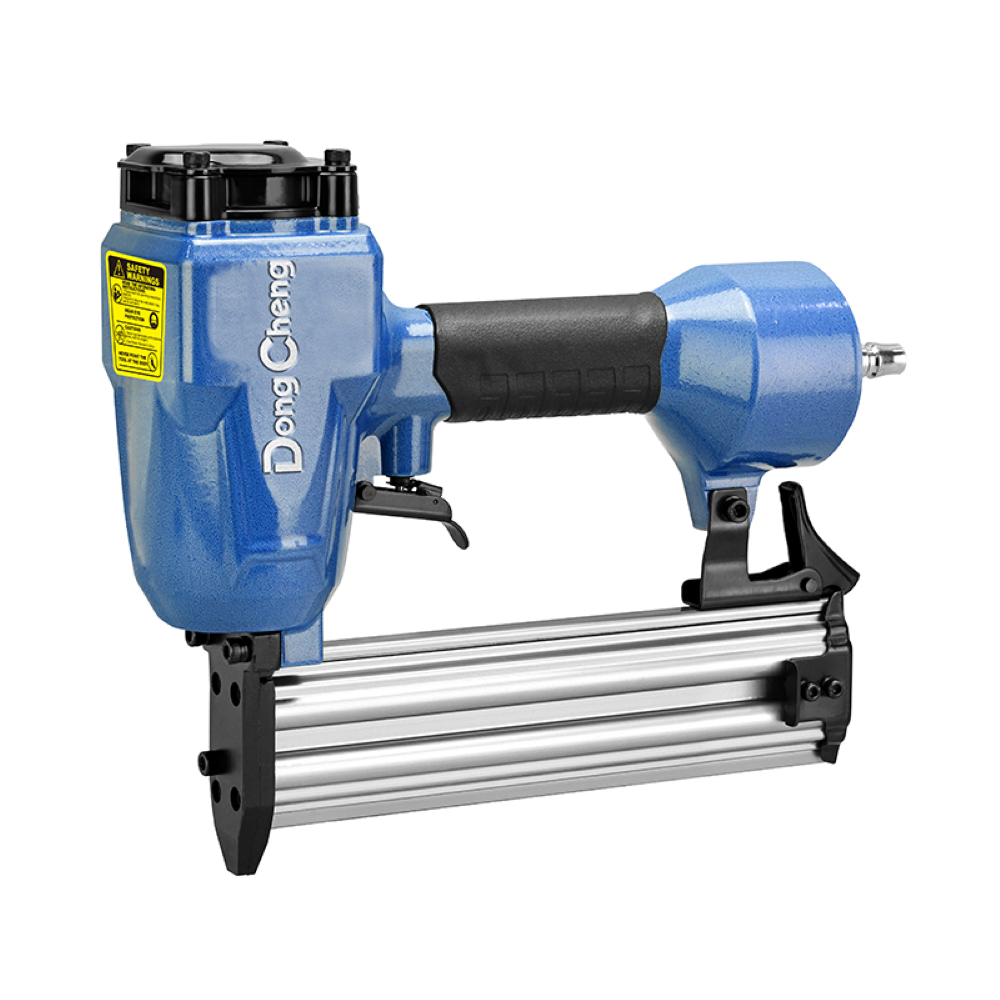

DongCheng Pneumatic Brad Nailer F-50 – D03-T50G

The D03-T50G is a professional-grade pneumatic tool engineered specifically for woodworking, interior decoration, and paneling. It features a robust yet lightweight construction, ensuring effortless maneuverability during extended use. This model is optimized for firing high-precision brad nails.

2. Key Features

• Rubberized Handle: Provides maximum user comfort, prevents slipping, and effectively absorbs shocks during operation.
• Aluminum Alloy Magazine: Features a hard oxidation treatment, making it lightweight, durable, and highly resistant to wear and tear.
• Heat-Treated Air Inlet: The air intake interface is heat-treated to withstand high pressure and minimize wear, significantly extending the tool's lifespan.
• Touch Switch Design: Designed for rapid, continuous nailing with high precision and minimal physical effort.

3. Technical Data

• Working Pressure: 5 – 8 Bar
• Air Pipe Inner Diameter: 5 mm
• Magazine Capacity: 100 pcs
• Nail Type: Brad Nail
• Nail Size: 1.6 × 1.4 mm (Max length: 50 mm)
• Net Weight: 1.85 kg (Lightweight for easy handling)

4. Operating Instructions

1. Connection: Connect the tool to an air compressor using a 5mm ID air hose. Ensure the operating pressure is set between 5 and 8 Bar.
2. Lubrication: Before use, apply one or two drops of the provided lubricating oil into the air inlet to ensure smooth piston movement.
3. Loading Nails: Open the aluminum magazine, insert the brad nail strip (up to 50 mm in length), and secure the magazine latch.

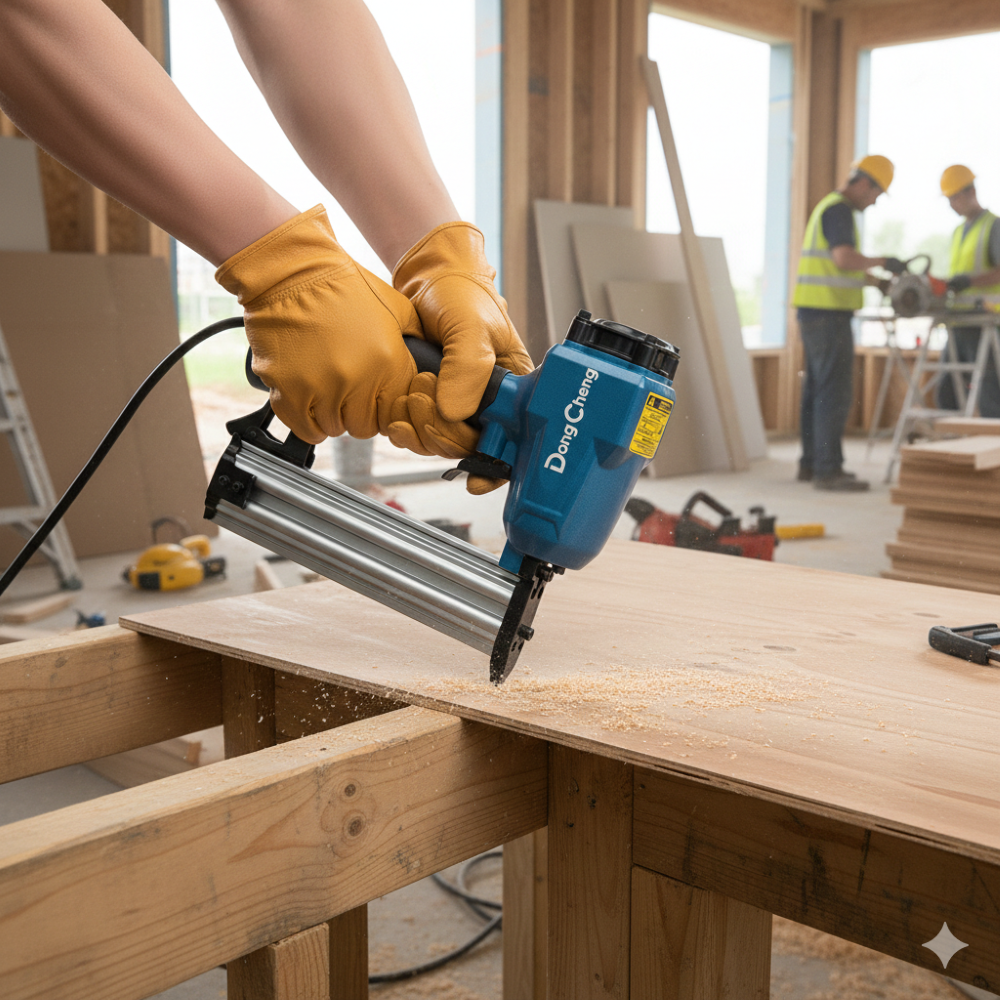

4. Operation: Position the nose of the tool against the work surface and pull the trigger. The "Touch Switch" allows for rapid-fire sequential nailing.

5. Accessories & Package

The product is delivered in a retail Color Box containing:

• Wrenches (x2): For maintenance and adjustments.
• Oil Bottle (x1): For tool lubrication.

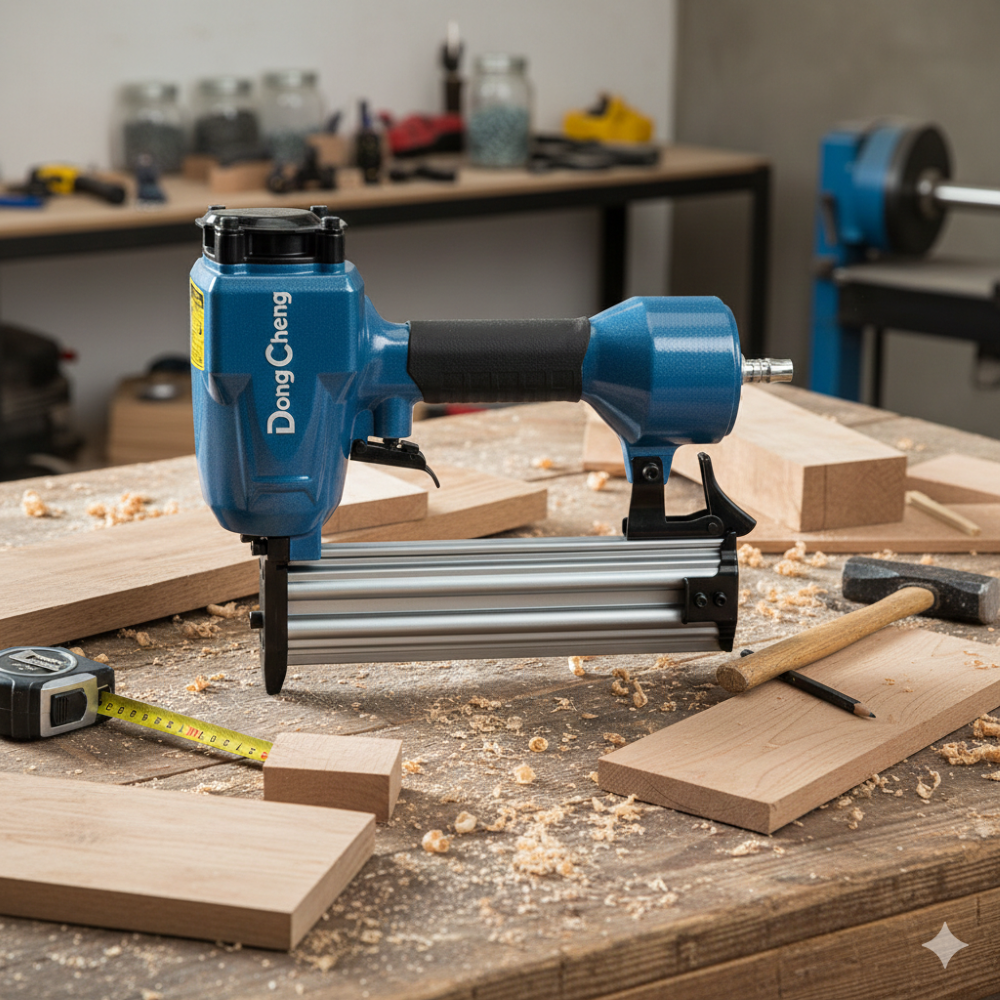

Common Applications:

• Furniture assembly.
• Fixing picture frames and decorative wooden trims.
• Installing door/window casings and wall paneling.

Warranty:

A one-year maintenance warranty is provided.
