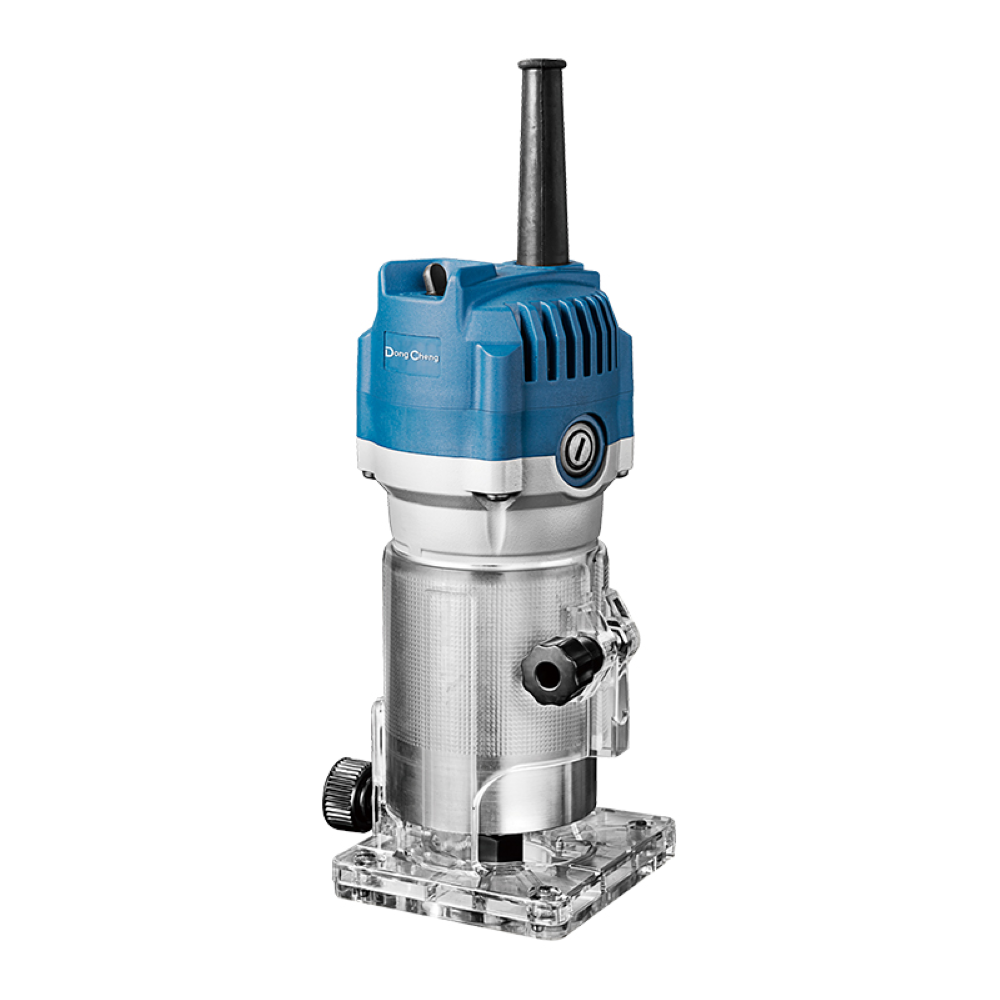

DongCheng 6mm 550W Wood Trimmer / Palm Router - DMP04-6

1. Technical Specifications

This device features high-performance specifications suitable for both precision tasks and professional woodworking:

• Rated Power Input: 550W
• No-Load Speed: 30,000 r/min (High speed for smooth, clean cuts)
• Collet Size: Available in two sizes (Ø 6mm and 6.35mm / 1/4")
• Net Weight: 1.6 kg (Lightweight design for effortless manual control)

2. Key Features

1. Durable Construction: The aluminum housing ensures rigidity, durability under heavy-duty use, and a long service life.
2. Transparent Base: Equipped with a clear base/cover that allows the user to clearly see the workpiece and accurately monitor trimming and routing progress.
3. Precision Scale: Features an engraved scale on the body for high-precision cutting depth adjustments.

3. Included Accessories

The device comes as a complete kit to ensure immediate operational readiness:

• Collet (6.35mm)
• Wrenches (2 pcs) for bit changes
• Straight Guide assembly (for straight-line cutting)
• Template Guide plate
• Trimmer Guide assembly
• Extra set of Carbon Brushes
• Color box packaging

4. General Usage Guide

1. Bit Installation: Select the appropriate router bit for your task, insert it into the collet, and tighten securely using the provided wrenches.
2. Depth Adjustment: Use the integrated scale on the housing to set the desired cutting depth, then lock the base firmly.
3. Operation: Ensure the power switch is "OFF" before plugging it in. Maintain a firm grip on the tool and switch it on.
4. Guidance: Glide the tool along the wood edge or surface. Utilize the Transparent Base for visibility and the Straight Guide to maintain a perfectly straight path.
5. Maintenance: Clean the device from dust after each use. Periodically check the carbon brushes and replace them when worn using the included spare set.

5. Warranty

Includes a one-year maintenance warranty.
