DM-TECH BX1-630 Heavy-Duty Copper Arc Welding Machine – Dual Voltage 220V/380V, 630A Output – Industrial Welder for 3.2-8mm Electrodes (82KG)

DM-TECH BX1-630 Heavy-Duty Copper Arc Welding Machine – Dual Voltage 220V/380V, 630A Output – Industrial Welder for 3.2-8mm Electrodes (82KG)

Product Features:

• PURE COPPER TRANSFORMER: Engineered with 100% Copper Windings, offering superior electrical conductivity and heat dissipation compared to aluminum. This ensures consistent performance during long shifts and significantly extends the machine's lifespan.

• IMMENSE INDUSTRIAL OUTPUT: Delivers a massive Rated Output Current of 630A, providing the raw power needed for heavy steel fabrication, shipyards, and large-scale infrastructure projects.

• HEAVY-DUTY CONSTRUCTION: With a substantial Net Weight of 82KG and a Rated Input Power of 52.6KVA, this machine is built like a tank to withstand the roughest industrial environments.

• EXTREME ELECTRODE COMPATIBILITY: Designed to run heavy welding rods from 3.2mm up to 8mm. This capability allows for deep penetration welding on very thick structural steel plates.

• DUAL VOLTAGE FLEXIBILITY: Operates on both 220V and 380V (50-60 Hz) power supplies, making it adaptable to various industrial power grids.

• STABLE ARC CONTROL: The high No-load voltage of 76V ensures easy arc ignition and stability, even when using difficult electrodes or working on rusty surfaces.

• INCLUDED ACCESSORIES: Comes complete with a 1.5m cable with electrode holder, 1.5m cable with earth clamp, welding mask, and brush, ready for immediate use.

Product Description:

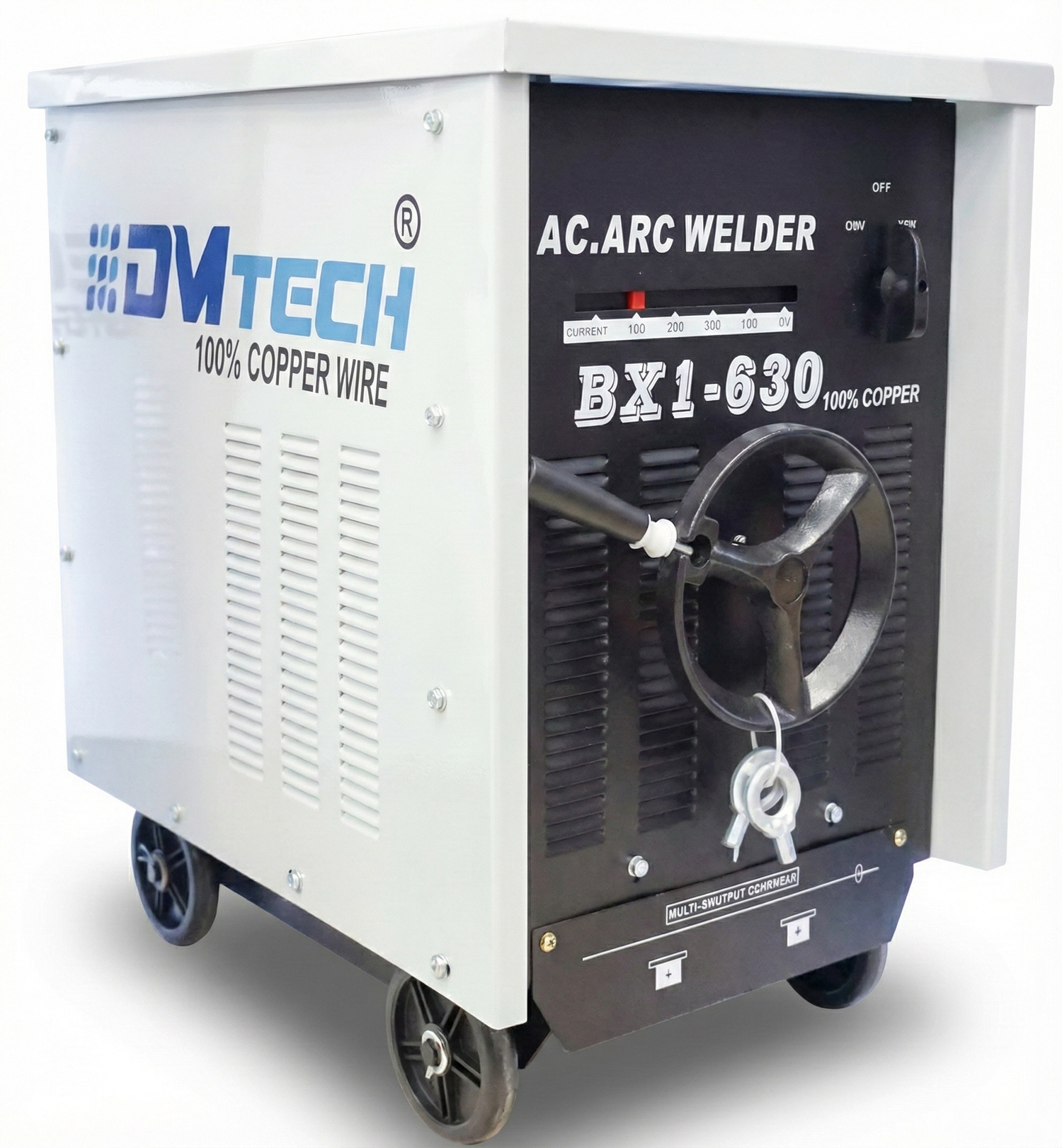

The DM-TECH BX1-630 (Copper Edition) is the ultimate industrial welding solution for professionals who refuse to compromise on quality.

Unlike standard welders, this model features a pure copper transformer, which handles high currents more efficiently and stays cooler under load. Weighing 82KG, it is a stationary powerhouse designed for factories and construction sites where heavy lifting is the norm. With a current range maxing out at 630 Amps, it effortlessly melts through thick steel sections using electrodes up to 8mm in diameter.

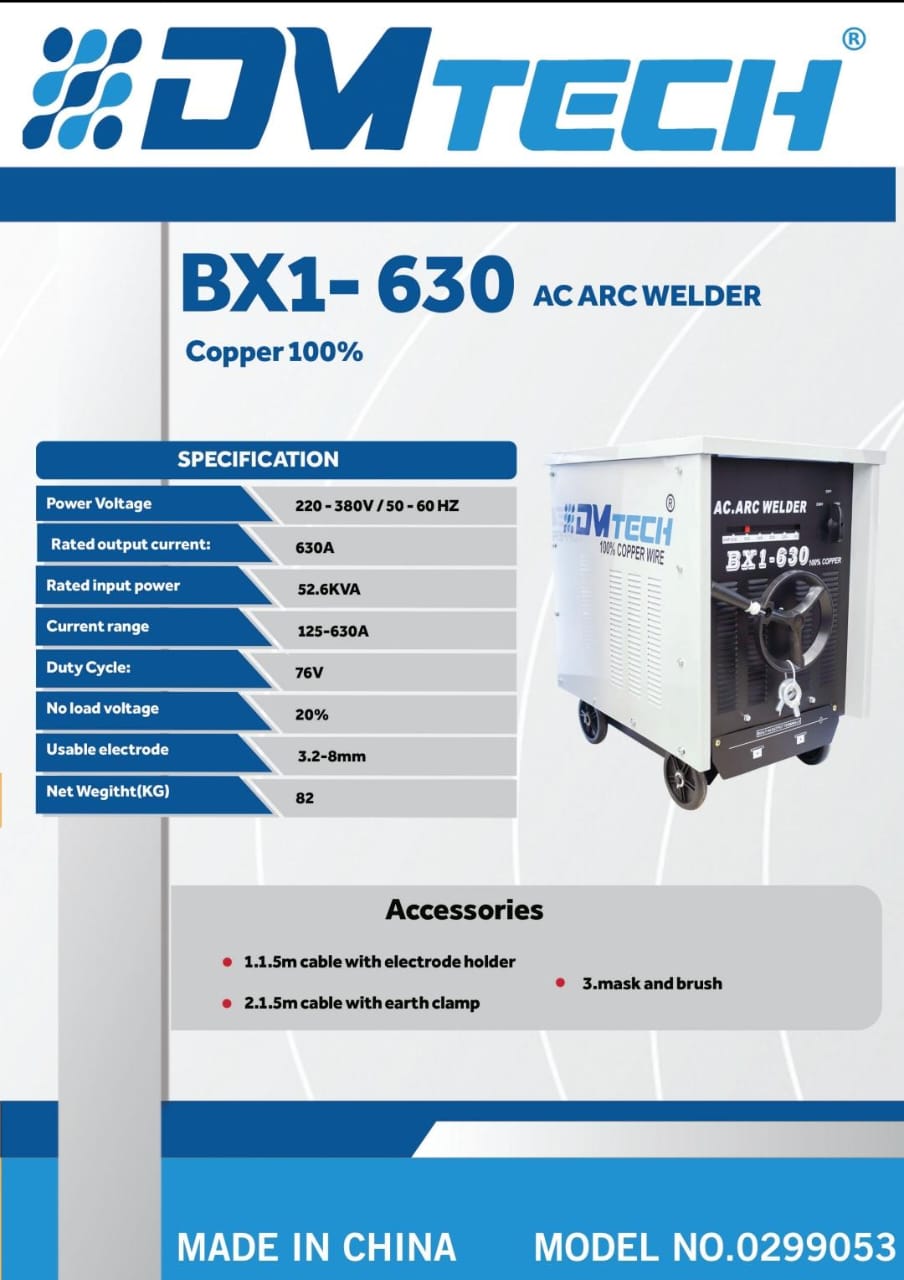

Key Technical Specifications:

• Winding Material: Copper (نحاس)

• Power Voltage: 220 - 380V / 50 - 60 HZ

• Rated Output Current: 630A

• Current Range: 125 - 630A

• Rated Input Power: 52.6 KVA

• Usable Electrode: 3.2 - 8mm

• No-Load Voltage: 76V

• Duty Cycle: 20%

• Net Weight: 82 KG

For projects demanding the highest durability and power, the copper-wound DM-TECH BX1-630 is the professional's choice.
