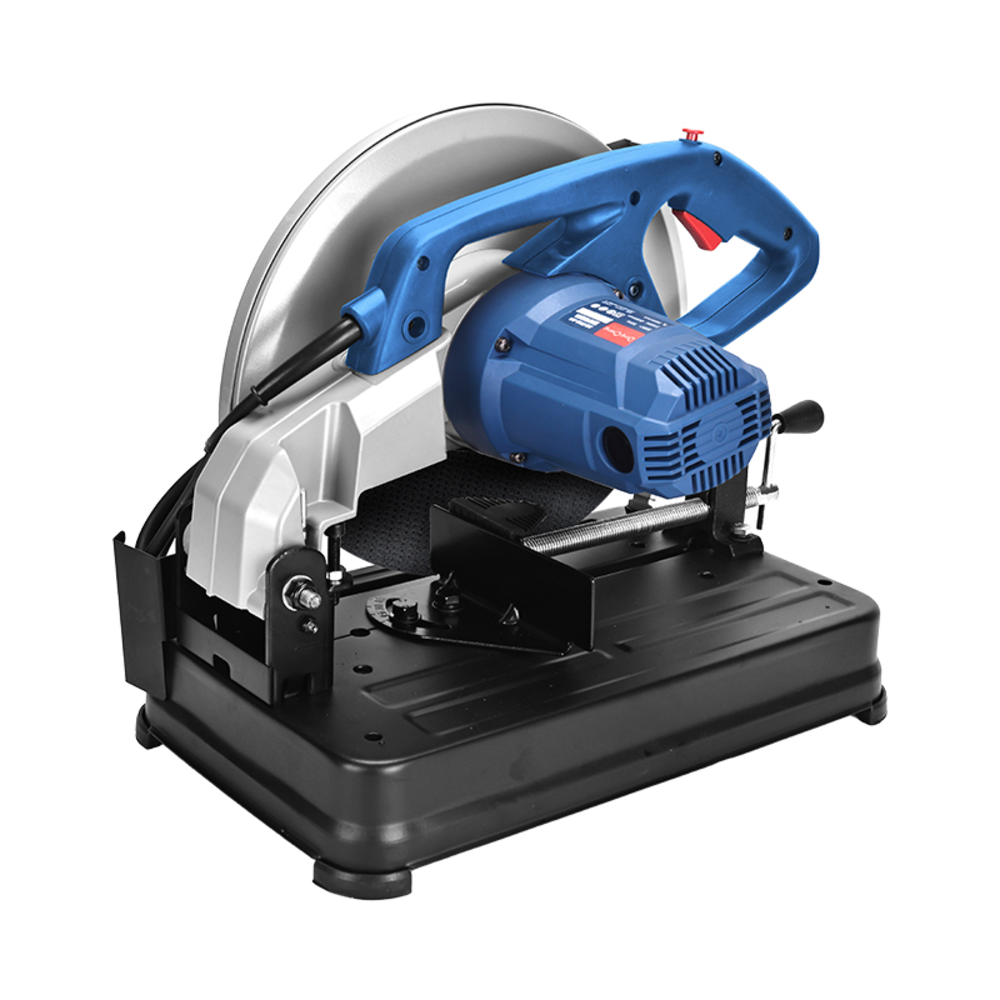

DongCheng 14-Inch Electric Cut-Off Machine - 2600W - DJG09-355
Remaining None only
DongCheng DJG09-355 Cut-Off Machine A professional 2600W metal cutter featuring a 355mm wheel and 3900 RPM. It boasts a high-performance motor and an adjustable cutting angle (0-45°). Designed with an ergonomic D-handle and a heavy-duty base for stab more information
SAR 690.00
+
Earn loyalty points with this purchase
Rewardsproduct sku
DNG0005
Weight
14.5 kg
share product
product description
The DongCheng DJG09-355 is a robust electric cut-off machine designed for heavy-duty applications. This machine is built to cut various metals—such as pipes, rods, and iron angles—with precision and speed. It features a large 355mm cutting disc and a powerful motor to ensure high performance in industrial jobsites and workshops.
2. Key Features:
- Powerful Motor: Equipped with a massive 2600W motor, delivering high cutting efficiency even with hard metals.
- Efficient Cooling System: Designed with an effective heat dissipation system, which protects the motor and extends the tool's lifespan during continuous operation.
- Ergonomic Design: Features an ergonomically designed D-shaped handle to provide superior comfort and control.
- Durable Base: Fitted with a high-rigidity base to ensure complete stability during operation and reduce vibrations.
3. Technical Specifications:
<th style="text-align: left;">Specification</th> <th style="text-align: left;">Details</th>| Rated Power Input | 2600 W |
| No-load Speed | 3900 RPM |
| Wheel Size | 355 x 3 x 25.4 mm |
| Miter Cutting Angle | Adjustable from 0 to 45 degrees |
| Max. Cutting Capacity (Pipe) | Φ115 mm |
| Max. Cutting Capacity (Profiled Bar) | 115 x 130 mm |
| Net Weight | 14.5 kg |
4. Usage Guide:
- Preparation & Safety: Ensure safety gear is worn and place the machine on a level, stable surface.
- Securing the Workpiece: Place the metal piece on the base and use the built-in vise to clamp it securely.
- Angle Adjustment: Adjust the back fence to the desired angle (0-45°) and tighten it securely if miter cutting is needed.
- Operation: Press the power trigger and wait for the disc to reach its maximum speed (3900 RPM).
- Cutting: Lower the cutting arm slowly and steadily without applying excessive pressure.
- Finishing: Raise the arm and wait for the disc to come to a complete stop before removing the workpiece.
5. Warranty:
A one-year maintenance warranty is provided.
