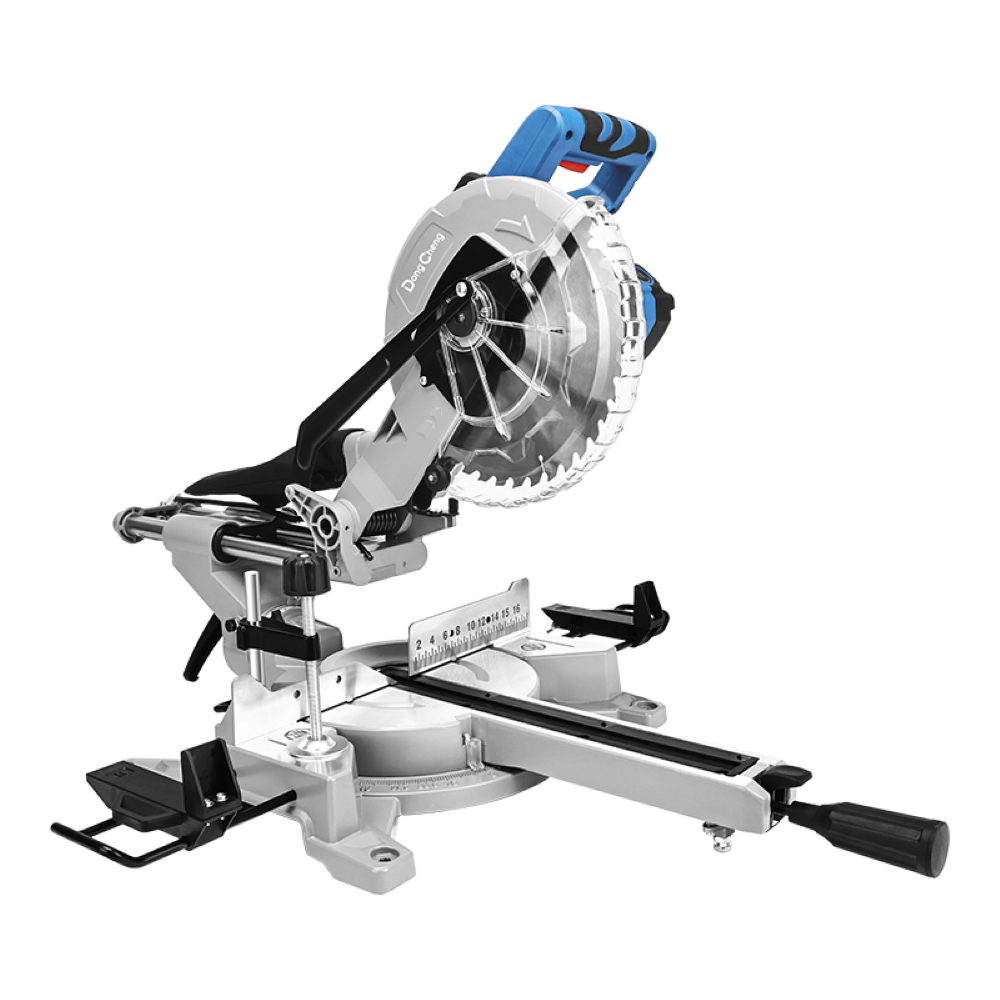

DongCheng 10-Inch Table Miter Saw for Wood & Aluminum, 1800W – DJX10-255

I. Technical Specifications

This device is a high-performance power tool engineered for precision cutting operations. Its specifications are as follows:

• Rated Power Input: 1800 W
• No-Load Speed: 5300 r/min
• Blade Diameter: 255 mm
• Blade Bore Diameter: 25.4 mm
• Net Weight: 13.7 kg

II. Key Features

1. Powerful Motor: Equipped with an 1800W motor to ensure high cutting efficiency, even when processing tough materials.
2. Sliding Mechanism: Features a sliding track that provides a wider cutting range, allowing for the handling of oversized workpieces.
3. High Durability: Utilizes a gear-driven transmission structure, which enhances the tool’s lifespan and withstands heavy-duty use.
4. Excellent Stability: The widened die-cast base provides superior stability during operation, reducing vibrations and increasing cutting precision.

III. Included Accessories

The device comes with a comprehensive set of essential accessories for immediate operation:

• TCT Saw Blade (for wood and non-ferrous metal cutting).
• Vertical Clamp Assembly for securing workpieces.
• Holder Assembly (2 pieces).
• Dust Bag Assembly to maintain a clean workspace.
• Specialized Wrench for blade installation and replacement.
• Locking Knob.

IV. Operating Instructions (General Guidelines)

1. Preparation: Install the appropriate saw blade for the material (e.g., aluminum or wood) using the provided wrench. Ensure the dust bag is securely attached.
2. Securing the Workpiece: Place the material on the die-cast base and use the vertical clamps to lock it firmly in place to prevent any movement during cutting.
3. Angle Adjustment: Set the desired cutting angle using the dedicated adjustment knobs on the saw base.
4. Operation and Cutting: Switch on the device and wait for the blade to reach its maximum speed (5300 r/min). Use the handle to lower the saw head gradually and smoothly into the workpiece. Utilize the sliding mechanism to move the blade forward or backward for wider cuts.
5. Safety: Always wear safety goggles and gloves. Ensure the device is disconnected from the power source when changing blades or performing maintenance.

V. Warranty

A one-year maintenance warranty is provided with this product.
