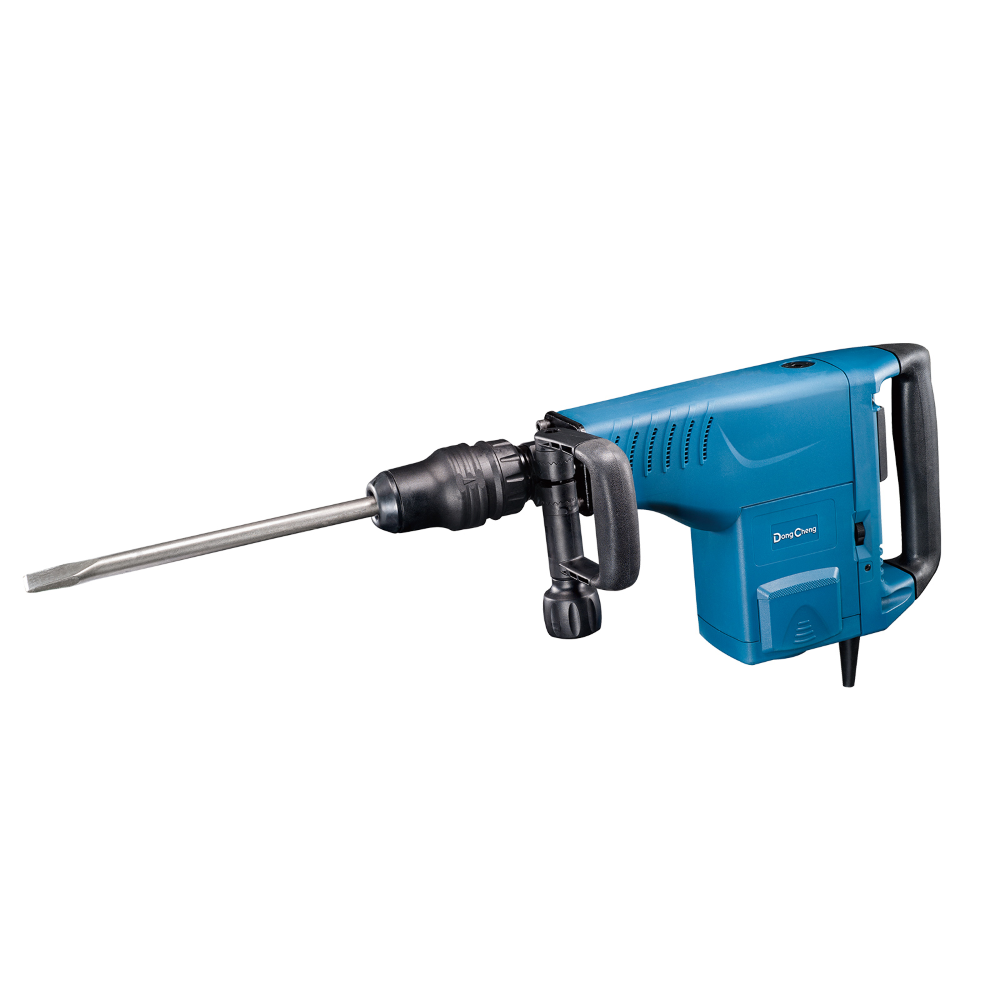

Dongshong DZG10 10.4kg 1500W Demolition Hammer

The DZG10 is a professional, high-performance demolition hammer specifically engineered for heavy-duty tasks requiring massive breaking force. Featuring a robust design and a powerful motor, it is the ideal tool for breaking concrete, removing tiles, and creating openings in walls and solid surfaces.

Technical Specifications

• Rated Power Input: 1500W
• Impact Rate: 900 - 1890 bpm
• Impact Energy: Up to 16.8 Joules (ensuring high demolition efficiency)
• Bit Holder (Chuck): SDS-Max (for quick, secure bit changes during heavy operation)
• Net Weight: Approx. 10.4 kg (providing superior stability during use)
• Voltage: 220-240V

Key Features

1. Powerful Copper Motor: Equipped with a 1500W motor designed for continuous work without overheating.
2. Anti-Vibration System: Features vibration-absorbing handles to reduce user fatigue during long shifts.
3. Speed Control: Equipped with a constant speed control dial to maintain consistent impact force even under heavy load.
4. Ergonomic Design: A 360-degree rotating side handle allows for precise control from various angles.
5. Durability: The body is constructed from high-quality materials to withstand shocks and harsh job site conditions.
6. Soft Start Function: The machine starts gradually to ensure accuracy and prevent sudden kickbacks.

Operating Instructions

1. Preparation: Ensure the plug is disconnected before installing chisels or bits.
2. Bit Installation: Push the SDS-Max chisel into place and rotate slightly until you hear a "click" indicating it is locked.
3. Lubrication: It is recommended to apply a small amount of grease to the bit shank before insertion to ensure smooth movement and prolong tool life.
4. Operation:
   • Hold the device firmly with both hands (rear and side handles).
   • Position the chisel tip on the target area at an appropriate angle.
   • Press the trigger and apply light pressure; let the machine's weight and motor do the work.
5. Shutdown: Lift the device from the surface before releasing the trigger.

Warranty

A one-year maintenance warranty is provided.

Safety and Maintenance Instructions

• Wear PPE: Always wear safety goggles, earplugs, gloves, and safety shoes.
• Carbon Brush Inspection: Regularly check the motor's carbon brushes and replace them when worn to maintain performance.
• Storage: Clean the tool from concrete dust after every use and store it in its carrying case in a dry place.

Summary: The DongCheng DZG10 is an excellent choice for contractors and craftsmen seeking a professional demolition tool that combines raw power with long-term durability and ease of use.
