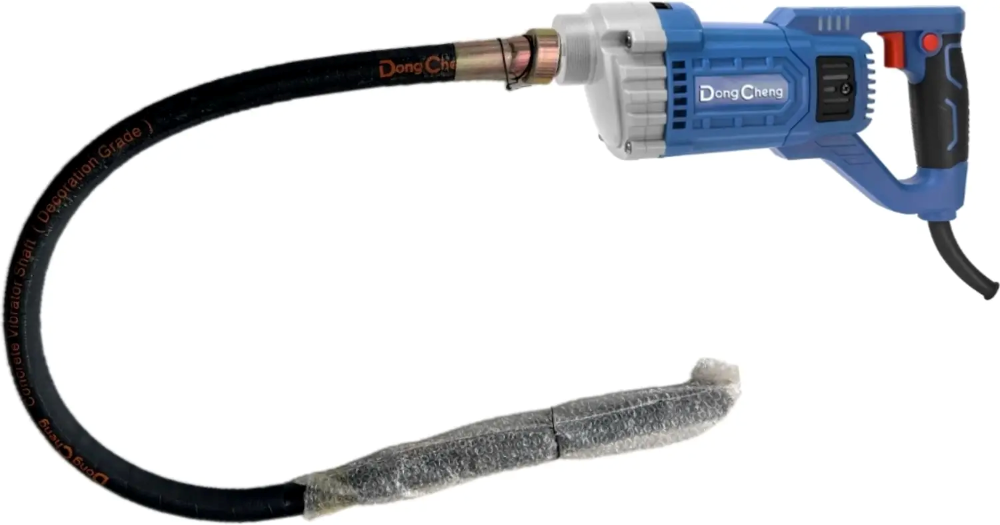

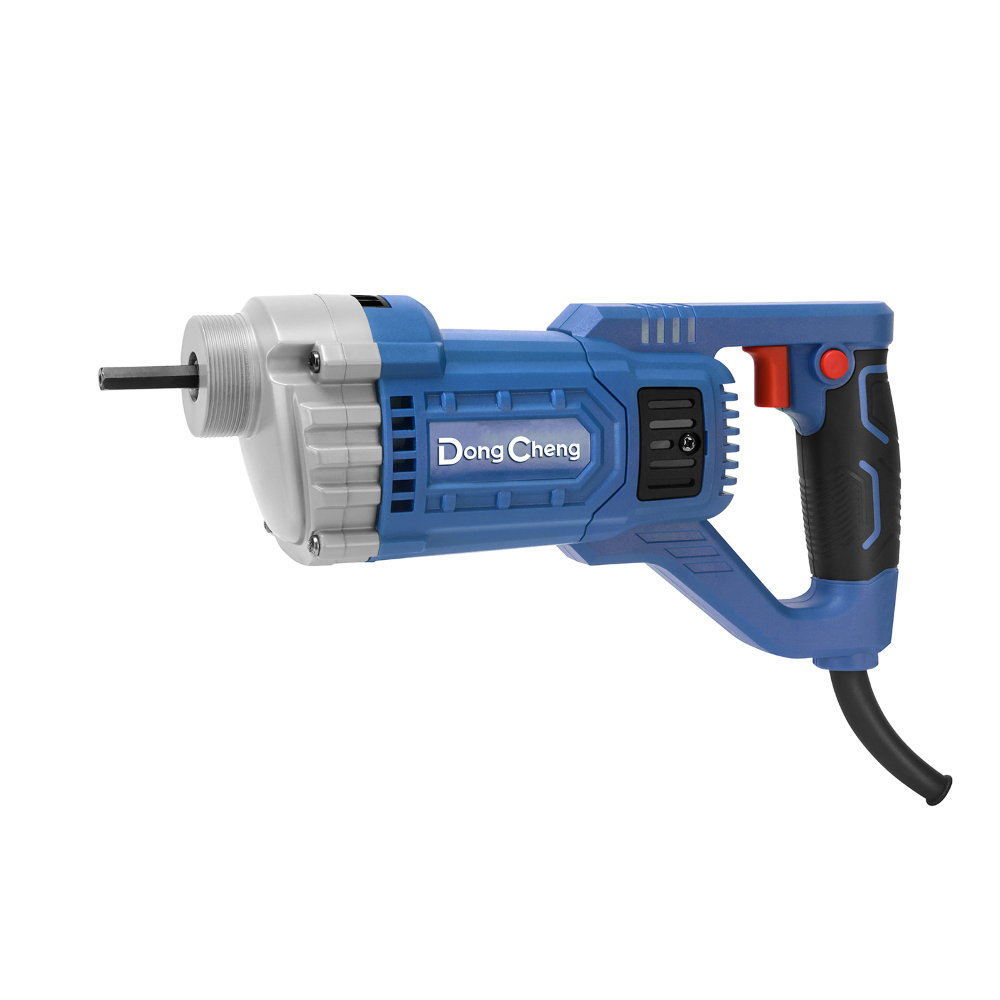

Dongshong DZD35 1200W Portable Electric Concrete Vibrator

The DZD35 (also known by model code Z1D-FF-35) is a high-efficiency portable concrete vibrator. It is designed for construction applications to consolidate concrete and remove air bubbles, ensuring maximum density and strength after curing. It features a compact design for easy handling and manual control.

Key Features

• Powerful Performance: Equipped with a 1200W motor, ensuring stable and robust performance during continuous operation.
• High Durability: The head is made of cast aluminum, making it sturdy and resistant to impacts and harsh job site conditions.
• Effective Cooling System: Features efficiently designed ventilation slots for heat dissipation, protecting the motor from overheating and extending the product's lifespan.
• Portability: Characterized by a compact body and an ultra-lightweight design (only 2.0 kg), reducing user fatigue and allowing for longer working periods.

Technical Specifications

• Rated Power Input: 1200 W
• No-load Speed: 4700 RPM
• Output Shaft Specification: 8 mm
• Net Weight: 2.0 kg
• Packaging Type: Color box

How to Use

1. Connection: Connect the vibrator head (hose) to the device's output port (8 mm).
2. Operation: Turn on the device before immersing the head into the freshly poured concrete.
3. Consolidation: Immerse the vibrator head vertically into the concrete at a sufficient depth. Leave it for a few seconds until air bubbles stop appearing and the surface becomes shiny and level.
4. Extraction: Withdraw the vibrator slowly to ensure the void left by the head is filled with concrete.

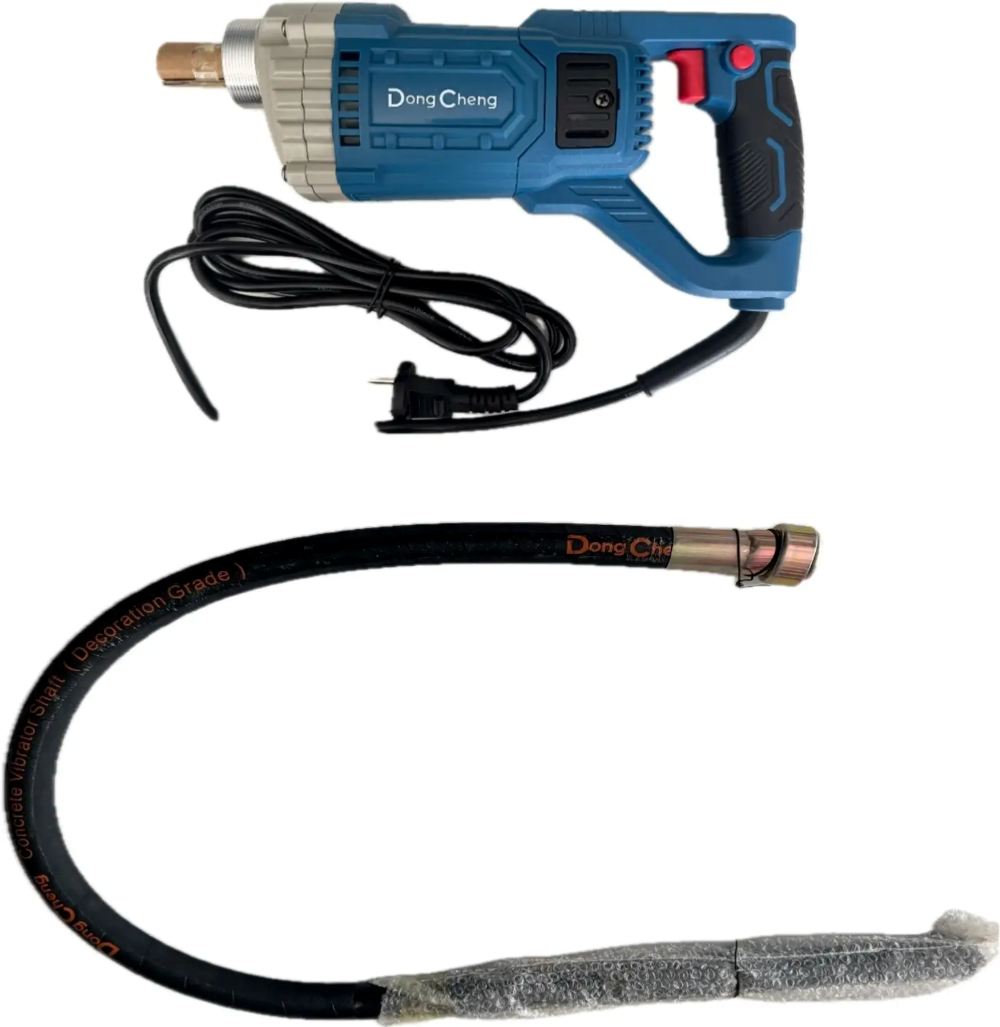

Warranty & Accessories

Warranty: One-year maintenance warranty provided.

Accessories: The device comes in its original packaging. Vibrator hoses are usually purchased separately, compatible with the mentioned 8 mm output shaft.
