Electrical Plug and Socket Tester | UT07A-UK
Remaining None only
The UNI-T UT07A-UK is a 230V UK plug tester. It features LED indicators that detect five common wiring faults immediately upon plugging in. Compact, safe, and easy to use (plug and play) without batteries, it's ideal for quickly and accurately ensuri more information
SAR 120.00
+
Earn loyalty points with this purchase
Rewardsproduct sku
DIG00022
Weight
64.0 g
share product
product description
The UT07A-UK is a smart, portable socket tester specifically designed for British Standard (UK) outlets. It is utilized for rapid detection of wiring faults in residential and commercial electrical sockets, ensuring the safety of electrical installations and preventing hazards such as electric shocks or fires caused by improper wiring.
Technical Specifications
- Operating Voltage: 230V AC
- Operating Frequency: 50Hz to 60Hz
- Operating Current: < 18mA

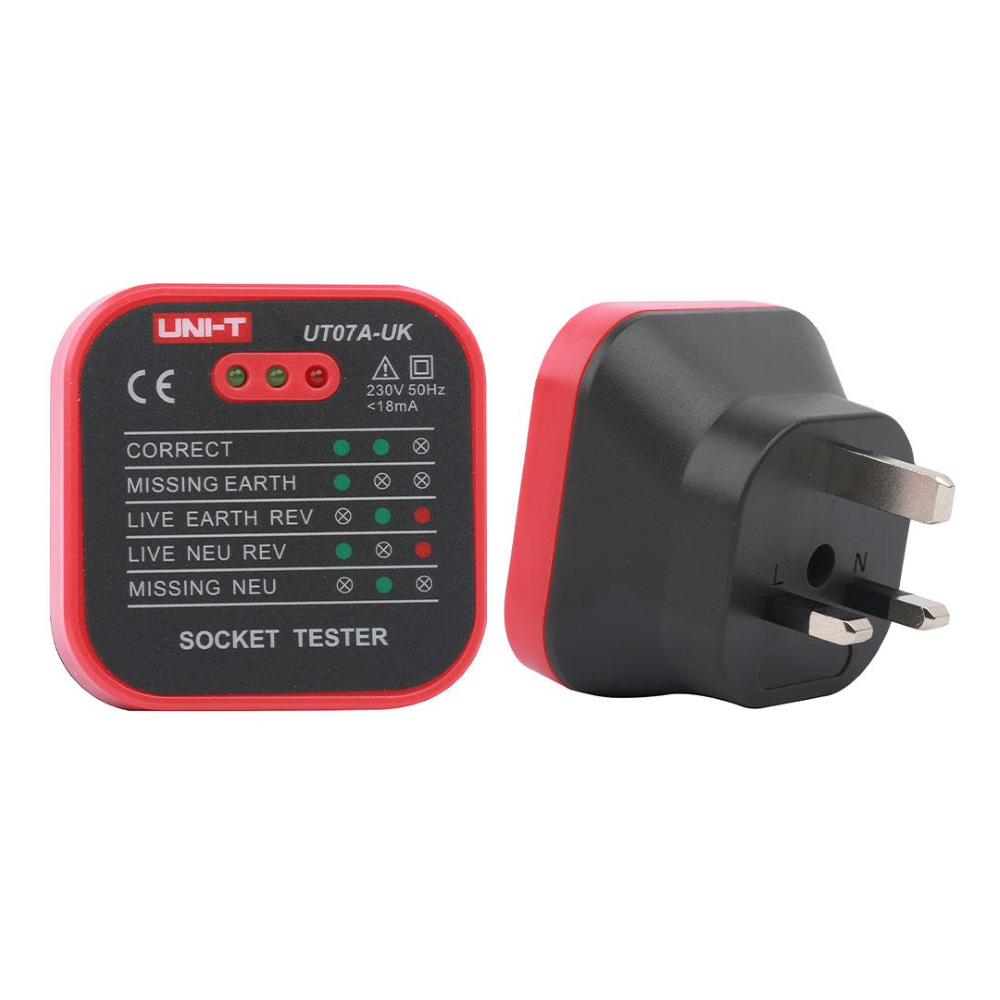

- Plug Type: Type G (UK Standard - 3 Pins)
- Operating Temperature: 0°C to 40°C
- Net Weight: Approx. 64g
- Dimensions: 65mm x 65mm x 40mm
- Color: Red and Grey (Distinctive UNI-T design)
- Certifications: CE, UKCA
Key Features
- Ease of Use: Plug and Play operation; no batteries required.
- Clear LED Indicators: 3 signal lamps identify wiring status accurately.
- Comprehensive Diagnostics: Detects 5 common faults plus correct wiring.
- Durable & Compact: Ergonomic design for field portability.
- Safety: Insulated, shock-resistant housing for technician protection.
Test Conditions (LED Indicators)
The faceplate includes a reference chart for the three indicator lamps (Green and Red):
- Correct: Two lamps on the right are lit.
- Missing Earth: Only the center lamp is lit.
- Live Earth Reverse: Left and center lamps are lit.
- Live Neutral Reverse: Left and right lamps are lit.
- Missing Neutral: Only the right lamp is lit.
- Live Missing: No lamps are lit.

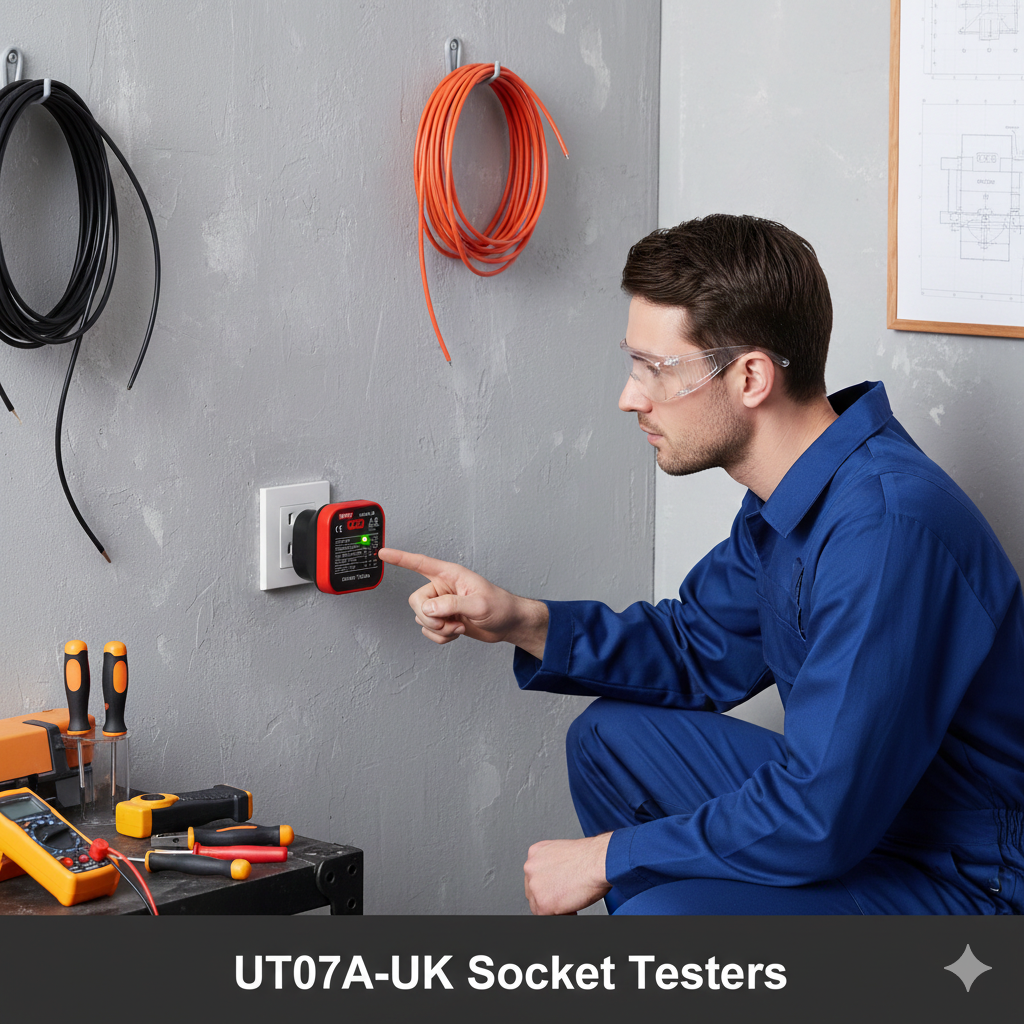

How to Use
- Insert the UT07A-UK directly into the socket to be tested.
- Ensure the socket switch is turned on.
- Observe the three LED indicators on the front panel.
- Compare the lighting pattern with the chart printed on the device to determine the wiring status.
- If a fault is detected, disconnect power and consult a qualified electrician.
- Remove the device from the socket once testing is complete.
Important Notes
- This device does not detect the quality of the grounding (resistance); it only confirms the presence of a connection.
- Do not leave the device plugged into a socket for extended periods; it is intended for quick diagnostic checks only.
