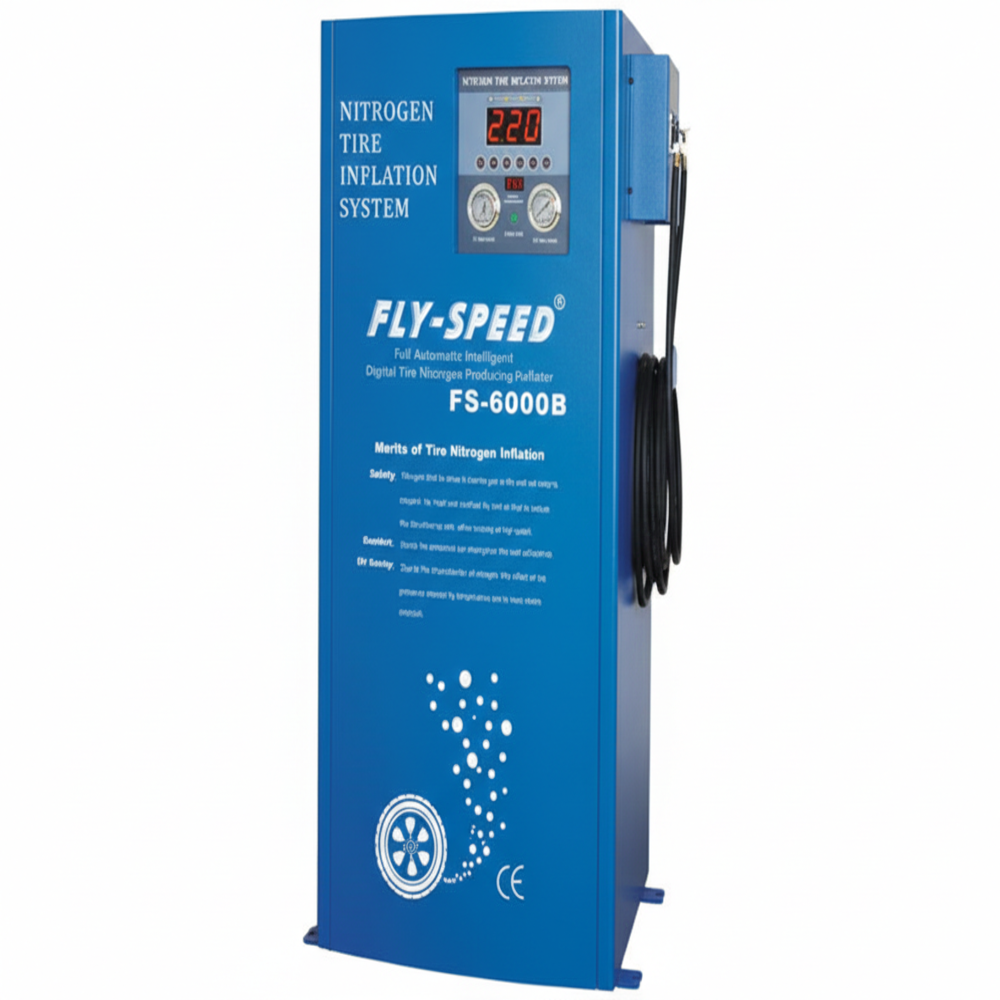

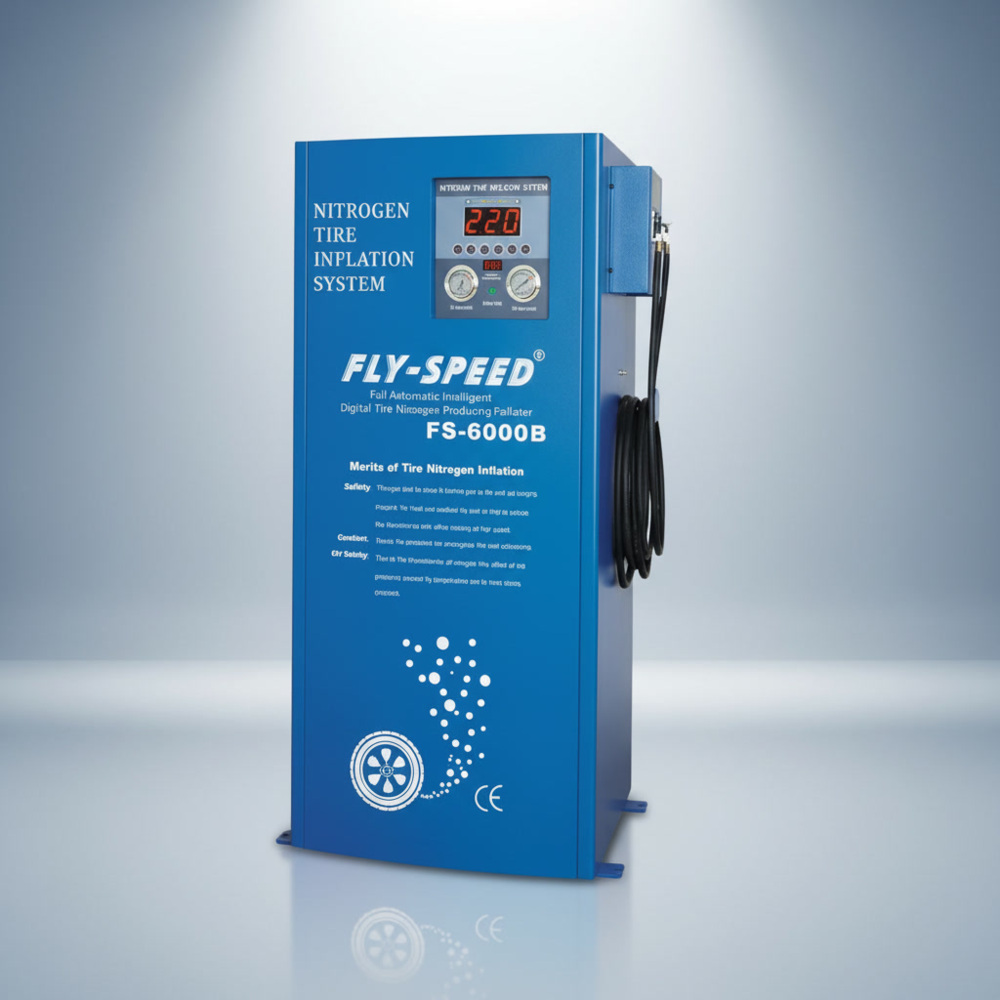

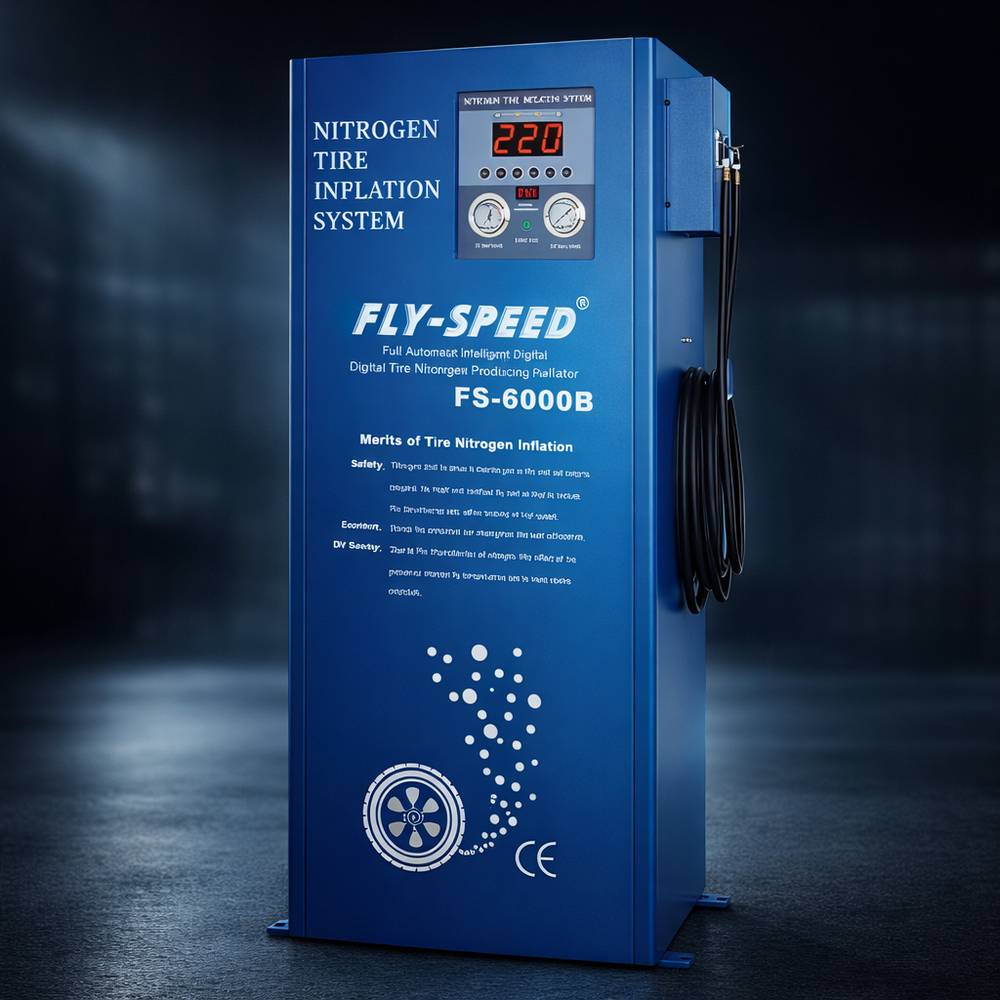

The FLY-SPEED FS-6000B is an advanced solution for tire service centers, operating with high efficiency to separate and fill nitrogen with a purity level of up to 99.5%. The device features a rugged design and a professional chassis housing a large-capacity internal storage tank, ensuring a continuous and rapid flow of nitrogen. This system provides ultimate measurement precision with an easy-to-read digital display, helping technicians complete tasks quickly and with high reliability. Using nitrogen helps maintain tire pressure for longer periods and reduces tire temperature during driving, which enhances tire lifespan and vehicle safety.
Key Features
-
High Nitrogen Purity: Provides a purity range of 95% to 99.5% to ensure maximum tire protection.
-
Large Storage Capacity: Equipped with a 120L internal tank to ensure uninterrupted workflow.
-
Extreme Precision: High inflation accuracy of up to ±0.5 psi to ensure the perfect pressure setting.
-
Easy Monitoring: Clear LED/LCD screen for data display and filling process control.
-
Practical & Durable Design: A robust body dedicated to heavy-duty use in industrial environments and workshops.
-
High-energy carbon molecular sieve BF-220# and imported core spare parts are adopted and used in manufacturing.
-
It can automatically evacuate, fill nitrogen, and detect pressure according to the set pressure.
-
Simultaneously displays the input pressure and the nitrogen pressure of the built-in gas tank.
-
No need to configure vacuuming equipment; vacuuming, and nitrogen filling can be completed with one click.
Technical Specifications
- Model: FS-6000B
- Power: 60W
- Power Supply : AC110V/220V / 50~60Hz
- Nitrogen Purity: 95~99.5%
- Nitrogen Output Flow: 100 L/min
- Storage Tank Capacity: 120 L / 31.8 Gallons
- Compressed Air Inlet Pressure Range: 8~10 Bar / 116~145 PSI
- Maximum Nitrogen Output Pressure: ≤87 PSI / 6 Bar
- Inflation Accuracy: ±0.5 PSI / 0.03 Bar
- Net Weight: 153 kg
- Dimensions: 1420(H) x 750(L) x 600(W) mm
Applications
- Nitrogen inflation for small and medium-sized car tires.
- Use in automotive service centers and major tire dealerships.
- Inflation of light truck tires requires precise and stable pressure.
- Ideal for quick service workshops and vehicle inspection centers.
