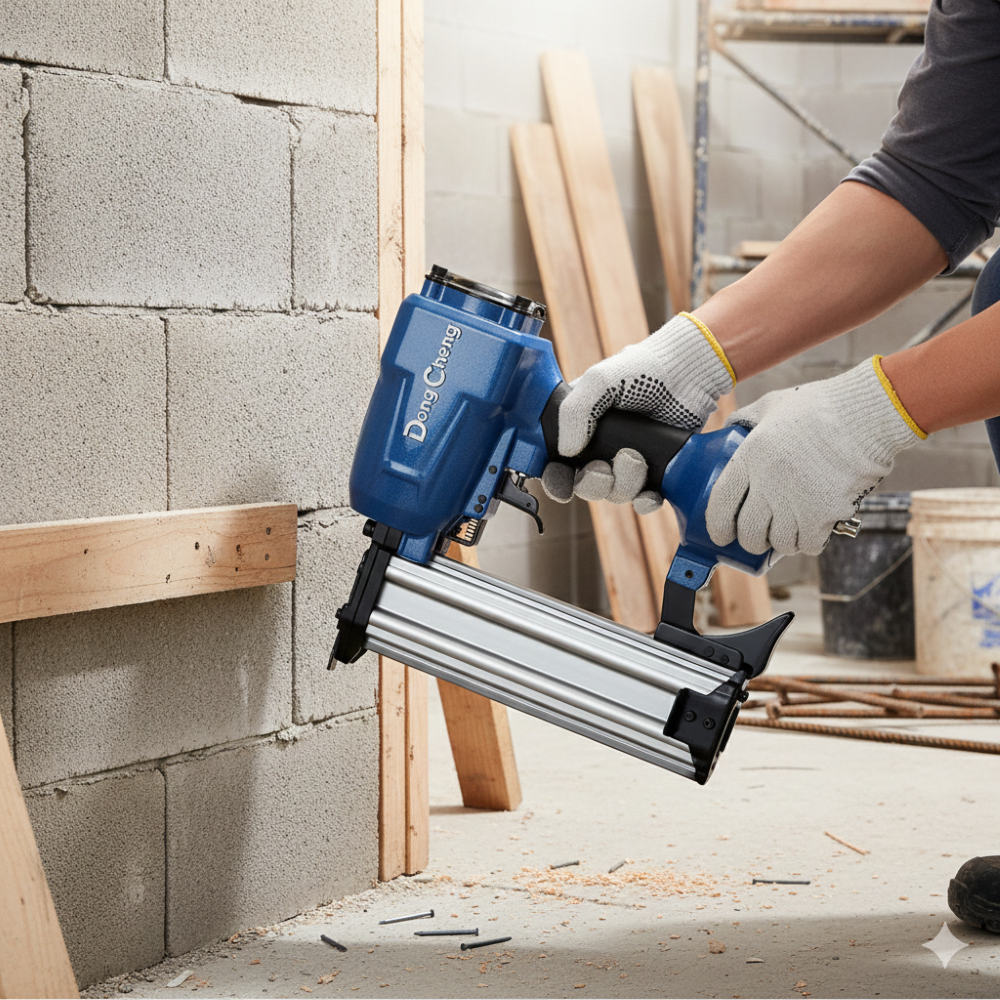

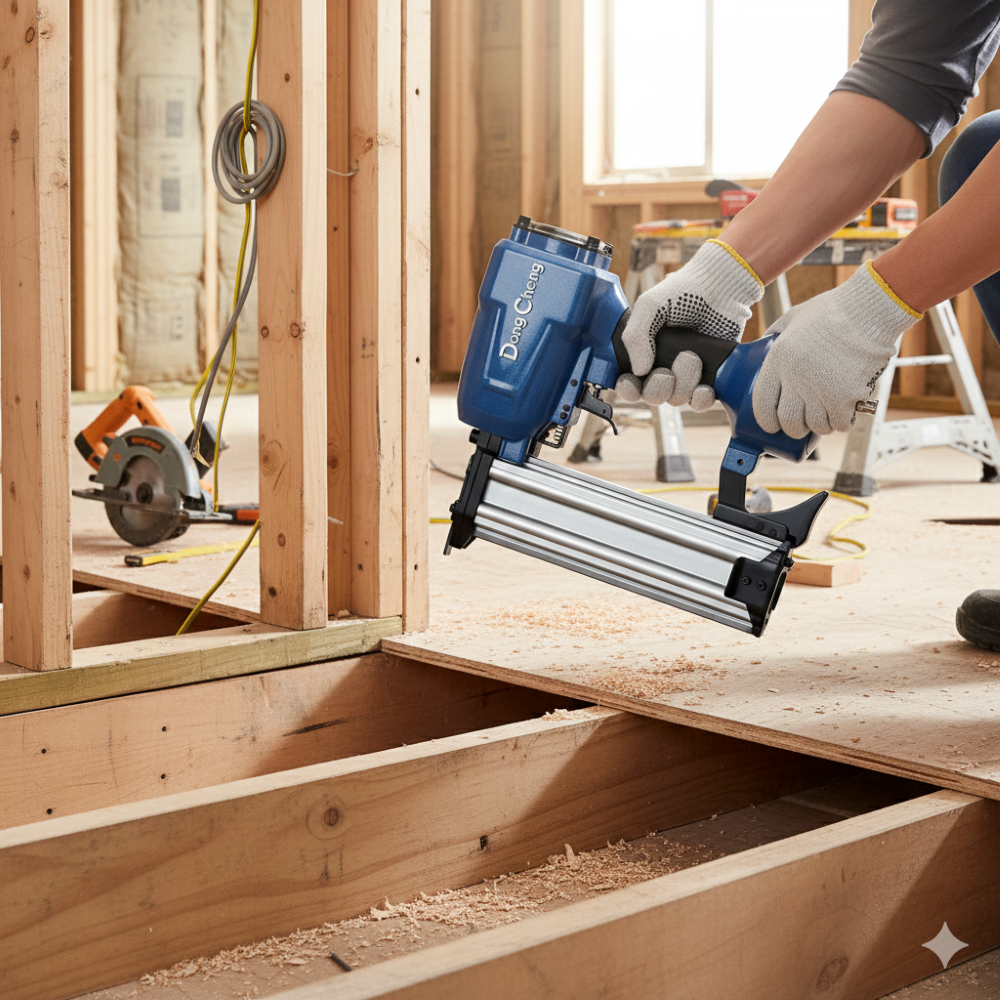

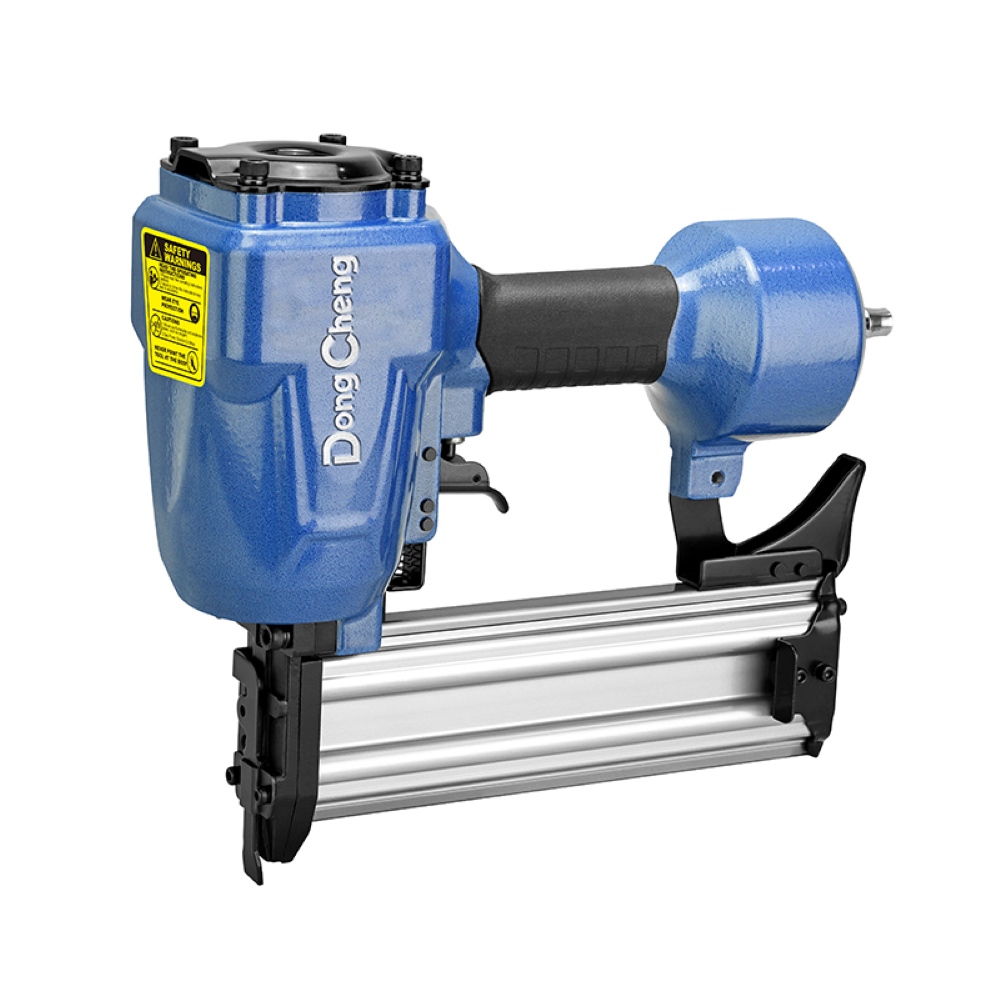

DongCheng CONCRETE AIR NAILER - D03-ST64G

The DongCheng D03-ST64G is a professional-grade pneumatic power tool specifically engineered for driving steel nails into hard surfaces. It features a rugged and durable design, making it an ideal choice for heavy-duty construction and professional carpentry.

2. Key Features

• Rubberized Grip: Ergonomically designed to provide maximum comfort, reduce vibration, and offer a non-slip surface for superior control.
• Aluminum Alloy Magazine: Features a hard-anodized finish for enhanced durability while maintaining a lightweight profile.
• Heat-Treated Air Inlet: Engineered for high wear resistance, significantly extending the tool's operational lifespan.
• Contact Actuation (Touch Switch): Supports rapid and continuous nailing for high-efficiency performance.

3. Technical Specifications

• Working Pressure: 5 – 8 Bar
• Air Pipe Inner Diameter: 5 mm
• Magazine Capacity: 70 pcs
• Nail Type: Steel Nails (T-Nails)
• Nail Dimensions: φ2.2 mm (Diameter) | 18 – 64 mm (Length)
• Net Weight: 2.95 kg

4. Operating Instructions

1. Connection: Connect the tool to an air compressor using a 5 mm ID hose. Ensure the operating pressure is regulated between 5 and 8 Bar.
2. Loading: Open the aluminum magazine, insert the appropriate steel nails (18–64 mm), and securely lock the magazine.
3. Operation: Utilizing the contact actuation design, place the nose of the tool firmly against the workpiece and depress the trigger to fire.
4. Maintenance: Apply a few drops of the included lubricating oil into the air inlet regularly to ensure smooth internal movement and longevity.

5. Package Accessories

• 2 x Wrenches
• 1 x Lubricating Oil Bottle
• Color Storage Box

6. Warranty

Includes a one-year maintenance warranty.
