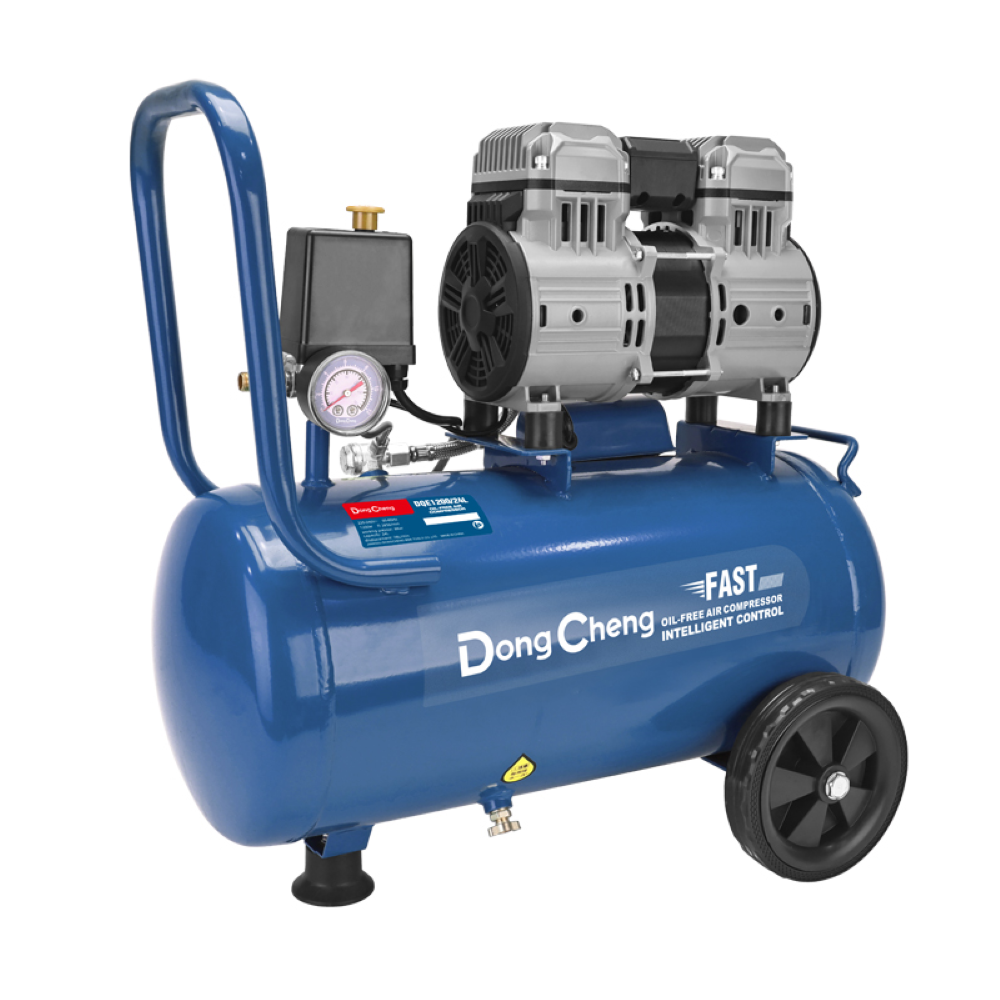

DongCheng Air Compressor 30L 1200W – DQE1200/30L

The Dong Cheng DQE1200/30L Air Compressor is the ultimate solution for professionals and DIY enthusiasts seeking high-performance paired with low-noise operation. Featuring advanced oil-free technology, this model is eco-friendly and virtually maintenance-free, making it the premier choice for woodworking workshops, painting, and tire inflation.

1. Technical Specifications

• Rated Power: 1200 W
• Working Pressure: 8 Bar
• Rated Speed: 2850 RPM
• Tank Capacity: 30 Liters
• Air Displacement/Flow Rate: 75 L/min
• Net Weight: 17.4 kg

2. Key Features

• Induction Motor: Powered by a 1200W high-efficiency induction motor that ensures stable performance and long-term durability.
• Oil-Free Design: Eliminates the need for routine oil maintenance, providing a clean air source free of oil contaminants—ideal for sensitive applications.
• Ultra-Quiet Operation: Equipped with an advanced noise-reduction unit, creating a significantly quieter work environment compared to traditional compressors.
• Durable Cylinder Head: Constructed from thick aluminum to ensure maximum strength, sustainability, and corrosion resistance.

3. Accessories Included

The device comes complete with:

• A set of rubber foot pads (for stability).
• Wheel assembly (2 pieces) for easy mobility.
• Packaging: Heavy-duty reinforced cardboard.

4. Operating Instructions

1. Assembly: Install the wheels and rubber pads to ensure stability and ease of transport.
2. Connection: Ensure the power switch is in the "OFF" position before plugging the cord into the electrical outlet.
3. Activation: Pull the pressure switch up to start the motor. The compressor will build pressure until it reaches 8 Bar, then shut off automatically.
4. Tool Connection: Connect the air hose and your desired tool (e.g., spray gun, tire inflator, or air stapler) to the air outlet.
5. Pressure Adjustment: Use the pressure regulator valve to fine-tune the output according to the tool’s requirements.
6. Post-Use Maintenance: Turn off the device and disconnect the power. It is highly recommended to drain residual air and moisture via the drain valve at the bottom of the tank to prevent rust.

5. Warranty

Comes with a one-year maintenance warranty.
